DGR

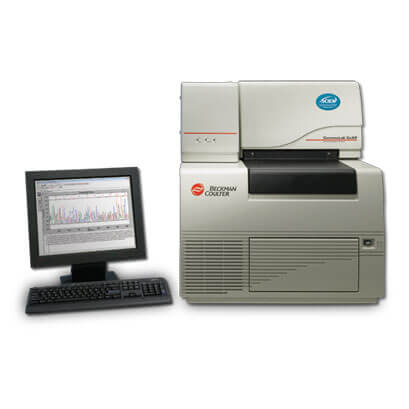

Make : Beckman Coulter, Inc., USA

Model :GeXP, S.N A220330260

Specification :

The GenomeLab GeXP supports DNA sequencing and fragment analysis on one platform, with one capillary array, one gel and one software.
This flexible system allows to run more than one application on the same plate and up to 192 samples.
Uses linear polyacrylamide (LPA) – maximizing performance, coated eight-capillary array, four-wavelength laser-induced fluorescence detection, 96-well microplate format for samples/buffer, eight samples read in parallel, automatic gel replenishment, single setup facilitates gene expression analysis, DNA sequencing and fragment analysis

The GenomeLab Genetic Analysis System is fully automated and capable of determining the base sequence and fragment length of DNA samples prepared with Beckman Coulter, Inc. dye-labeled reagents.
Four-color, dye-labeled terminator chemistry kits are used to process samples for base sequence analysis.
Generation of samples for fragment length analysis is performed using either of two techniques: dye-labeled primers for micro-satellite, gene expression AFLP and other similar applications and four-color dye-labeled terminator chemistry, for the single nucleotide polymorphism application.
Each sample, containing labeled DNA fragments, is automatically denatured and then separated by capillary electrophoresis.
The separation gel is automatically replaced in the eight capillaries after each separation. The separation gel supply is an easily replaced cartridge with a capacity sufficient for two full microplates. The instrument performs detection using laser-induced fluorescence in four spectral channels.
It automatically processes the four-channel raw data sets generated by each of the eight capillaries to produce high-quality base sequences or fragment lists after separation
