DGR

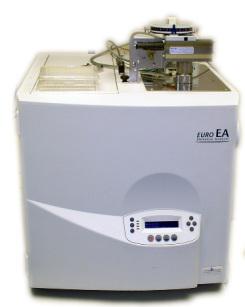

Elemental Analyzer (CHNS/O)

Make : Euro Vector, Italy

Model : Euro EA 3000 Series

Specification :

Estimation of CHN/CHNS/O in percentage measurements from low ppm traces up to 100% concentration
The CHNS(O) Analyzer determine of percent Carbon, Nitrogen, Hydrogen and Sulphur in virtually all existing substances.
The instrument has auto sampler, combustion reactors, chromatographic column, and Thermal Conductivity Detector (TCD) and can determine \CHNS\O with accuracy, speed of analysis and ease of operation.
The straightforward and reliable analytical layout avoids preserving precision and accuracy of results. Determination of Oxygen content is performed on the same instrument in pyrolysis mode by a quick change of configuration

It works on Dumas principle. The analysis is done through sample combustion at high temperature, fast separation of the resultant gaseous species and TCD detection.
The built in chromatographic column converts the compound and elutes it in the form of NO2,CO2,SO2,H2O which are detected with the help of TCD in less than 5 mins.
It also has pressurized Oxygen injection independently from helium carrier gas flow rate ensuring complete combustion and quantitative result. It is calibrated with standard compounds using the K-factors calculations.
This method finds greatest utility in finding out percentages of C, H, N, S, (O) in organic compounds which are generally combustible at 1800 °C.

MAIN FEATURES OF THE INSTRUMENT

1. High speed chromatography can analyze the sample in less than 5 min
2. Patented TurboFlash™ Combustion Technology synchronizes sample admission with pressurized oxygen injection independently from Helium carrier gas flow rate ensuring complete combustion and quantitative results
3. Supersensitive TCD Technology allows measurements from low ppm traces up to 100% on all Elements, granting linearity and perfect stability

• Soils, Sediments, Rocks (CNS)
• Biomass, Biofuel, Wastes (CHN-O)
• Plants, Branches, Leaves, Roots, Vegetables (CHNS-O)
• Coal, Coke, Peat (CHNS-O), Petroleum & Lubricants (CHNSO)
• Organics, Synthetic Compounds, Polymers, Textiles, Pharma, Fertilizers (CHNSO)

1. Eksperiandova, L. P., Fedorov, O. I., & Stepanenko, N. A. (2011). Estimation of metrological characteristics of the element analyzer EuroVector EA-3000 and its potential in the single-reactor CHNS mode. Microchemical journal, 99(2), 235-238.

1. Sample weight should be minimum of 0.5 g powered sample

Contact : 0285 2673041 Email Id : amrit.singh@icar.gov.in

Elemental Analyzer charges (Rs)includes GST

	Industry	University	National Lab/R&D's
CHNS Estimation	2000	400	1000	Per Sample
Oxygen Estimation	2000	600	1200	Per Sample
